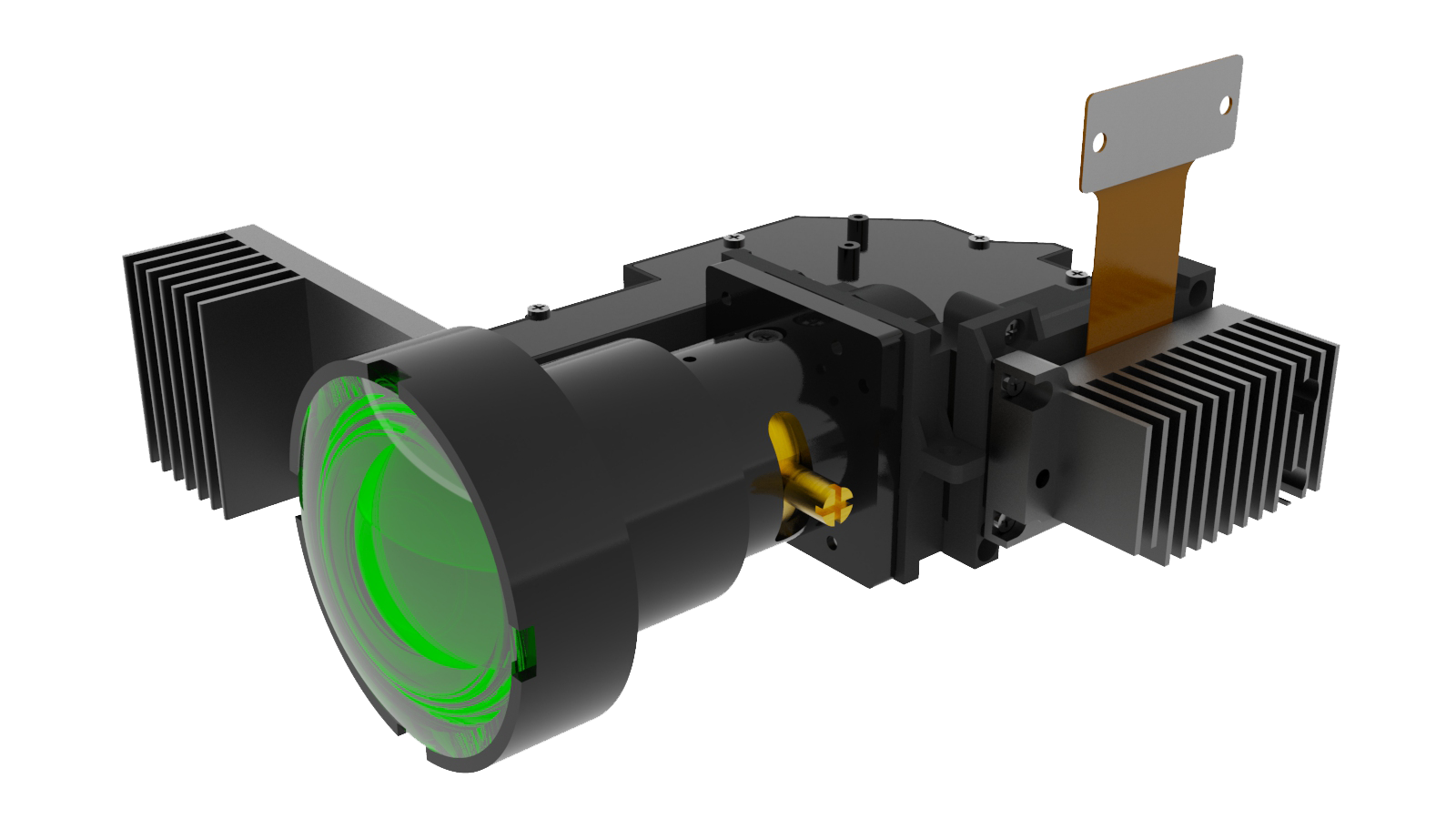

EVT-D2 Optical Engine Specification
OPN：eViewTek-3DP-D2-DLP300S OPTICAL ENGINE |
||||||||
|
Parameter
|
Content
|
Description
|
||||||
|
Micro-display Panel
|
0.3" DMD TRP
|
Single Panel
|
||||||
|
Resolution
|
1280 × 720（720P）
|
XPR Optional
|
||||||
|
Aspect Ratio
|
16 : 9
|
|
||||||
|
Optical Power(mW)
|
800mW @405nm
480mW @385nm |
|
||||||
|
Light Source
|
UV-LED
|
@405nm / 385nm
|
||||||
|
Lifetime(hrs)
|
2000
|
|
||||||
|
Working Distance(mm)
|
100
|
|
||||||
|
Pixel Shape
|
Square
|
|
||||||
|
Projected Pixel Size
|
85μm
|
|
||||||
|
Contrast
|
500 : 1
|
Full on / Full off
|
||||||
|
Dynamic Contrast
|
200 : 1
|
Checkerboard Pattern
|
||||||
|
Uniformity
|
90%（JBMA）
85%（Min/Max） |
|
||||||
|
TV Distortion
|
<0.1%
|
|
||||||
|
Focusing
|
Manual
|
|
||||||
|
Offset
|
0%
|
|
||||||
|
Projection Size(mm)
|
109 × 61
|
@100mm
|
||||||
|
Dimension(mm)
|
95.5 × 94.7 × 39.0
|
w/o heatsink
|
||||||
